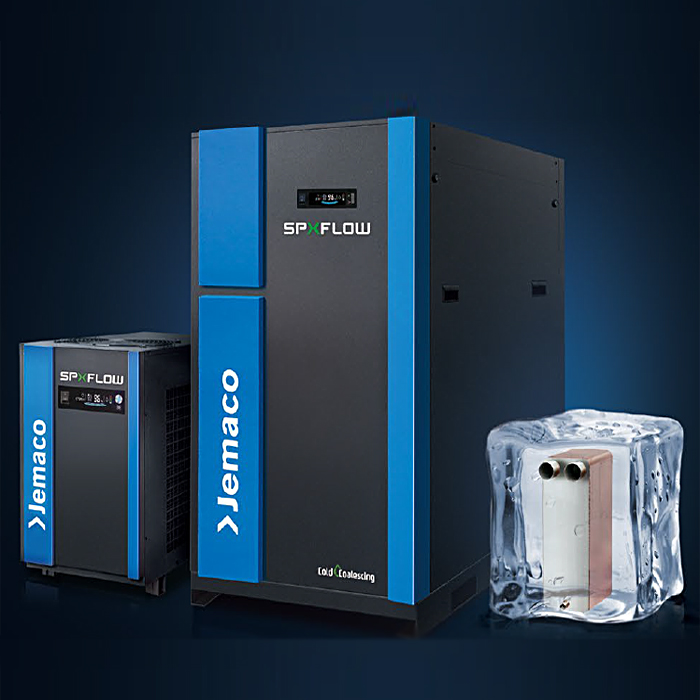

Up to 99%! Phase changing air dryer achieving energy reduction by itself
By using the sub-cooling effect by the heat remaining from freezing and melting of PCM,
In conjunction with the compressed air load, the refrigeration compressor operates only when absolutely necessary, realizing the remarkable energy saving efficiency of the air dryer.
In conjunction with the compressed air load, the refrigeration compressor operates only when absolutely necessary, realizing the remarkable energy saving efficiency of the air dryer.
Product characteristics
Phase changing dryer with differentiated technology
• PCM (phase changing material) is applied (application for patent rights)
• Refrigerant compressor ON/OFF control depending on the load of compressed air
Highest efficiency
• PCM (phase changing material) is applied (application for patent rights)
• Refrigerant compressor ON/OFF control depending on the load of compressed air
No Loss Drain
• Static volume sensor
• Zero air loss in case of discharge in condensate water
• Automatic conversion to timer mode when malfunction occurs
Efficiency of removing oil close to becoming oil free (PCM800 or above)
• Installation of cold coalescing filter
• Remove oil up to 99.8%
Operating principle

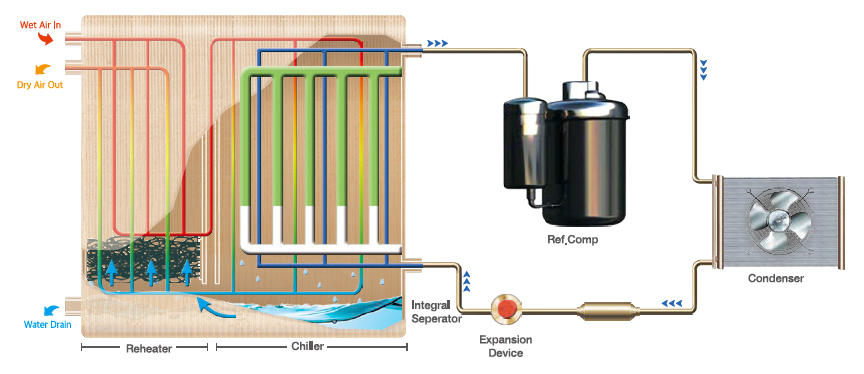

| Phase changing of PCM ① If cooling compressor and condenser fan are operated for coolant recirculation, coolant in the chiller freezes PCM. ② If the PCM becomes frozen, coolant compressor and condenser fan stop operation. ③ While the coolant circulation is stopped, compressed air is continuously cooled and dehumidified by frozen PCM and the energy can be reduced with no consumption of electricity. ④ With continuously flowing compressed air, PCM starts melting. When PCM is completely melted, freezing compressor and condenser fan start operation and PCM cooling is carried out. |
| Dehumidification of compressed air If high-temperature compressed air moves into dryer, condensate water and foreign substance are removed from front filter / separator. ② Compressed air goes through 1st cooling and moves to chiller following the path in the heat exchanger for cooling PCM and 2nd heat exchange. ③ In this case, condensate water is separated from compressed air and separator at the bottom of heat exchanger and discharged to the outside. ④ Dehumidified air goes through heater and exchanges heat with high-temperature compressed air in the dryer, leading to increase in temperature and decrease in relative humidity, and good quality of dry compressed air is supplied to the outside. |
